Electric Vibrator Motor Customized AC 220V 110v 60-72RPM Height 21mm Single Phase 49tyd Synchronous Motor 4W 110v

FOB Reference Price:Get Latest Price
$0.50 - $5.00 / Pieces | 100 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
SONGGANG
Model Number:
49tyd
Output Power:
4W
Type:
Synchronous Motor
Frequency:
50/60Hz
Phase:
Single-phase
Certification:
CE, ROHS, UL
Protect Feature:
Totally Enclosed
AC Voltage:
110v, 120v ,220v, 240v
Efficiency:
IE 4
Item Name:
110v 60-72RPM Height 21mm Single Phase Synchronous Motor 4W 110v
Model:
49tyd
Rated Voltage:
110v, 120v ,220v, 240v
Power Frequency:
50/60Hz
Input Power:
4W
Number of Poles:
8-16P
Rotor Speed:
60/72 RPM
Application:
Advertising Light Box, Material Level Device,Timer, Oil Pump
Shaft Length:
21mm
Port:
Shenzhen
Supply Ability
Supply Ability:
500000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Carton size: 30*29*22cm
N.W.: 12.5KG
G.W.: 13.0KG
100pcs in a carton
Port
FOB Shenzhen
Lead Time :
20-35 Days
Product Description

Introduction of Synchronous Motors 49tyd/TH-50


With over 20 years history in motor areas, Songgang is experienced in manufacturing and developing kinds of synchronous motors. Songgang's mission is to produce supreme quality and to offer our customer professional service. We are continously upgrading our facility and producing system to reach this goal. Our in-house facilities provide the versatility and capability to do a complete job for you and to serve you base on your requirements.

TH-50 is one of our most popular synchronous motor series in world with high life span, low noise, low temperature rise, high temperature insulation, high durable gears. Our customers is all over 30 countries, USA, UK, Germany, France, Indonesia, Malaysia, New Zealand...etc.

TH-50 can be widely used in Household Appliances,Microwave Oven,Oven,Heater,Blender, Advertising Light Box, Material Level Device,Timer, Oil Pump,Stage Light and so on.


Specifications can be made as customer's requirements:


• Rated Voltage: 12V, 24V, 100V, 110 ~ 120V, 200 ~ 240V AC
• Power Frequency: 50/60Hz
• Input Power: 4 W
• Output Speed: 0.8~ 60 RPM
• Rotation: CW, CCW, Free
• Rated Torque: 500 gm-cm ~ 10Kg-cm
• Operating Temperature: -10 ℃ ~ 60℃
• Insulation Strength: AC 1800V - 1 Min
• Insulation Class: A, B, F Class
• No Load Current: 20mA
• Noise: Less than 45dB
• Coil Temperature Rise: Less than 115K
• Insulation Resistant: 1000MΩ


Please let us know the following Parameter if we are lucky to attract your interests:

1. Voltage & Frequency
2. Number of revolutions and direction of rotation
3. Type of output shaft ( It would be better if you can offer us shaft drawing)
4. Torque on output shaft
5. Length of lead wire if you have requirements

Model
49tyd
Rated Voltage Range
12V, 24V, 100V, 110 ~ 120V, 200 ~ 240V AC
Frenquency
50/60hz
Output Speed
60/72rpm
Custom speed range
1rpm-72rpm
Rated Torque
0.8kgf.cm
Rotation
CW, CCW, Free
Operating Temperature
-10 ℃ ~ 60℃

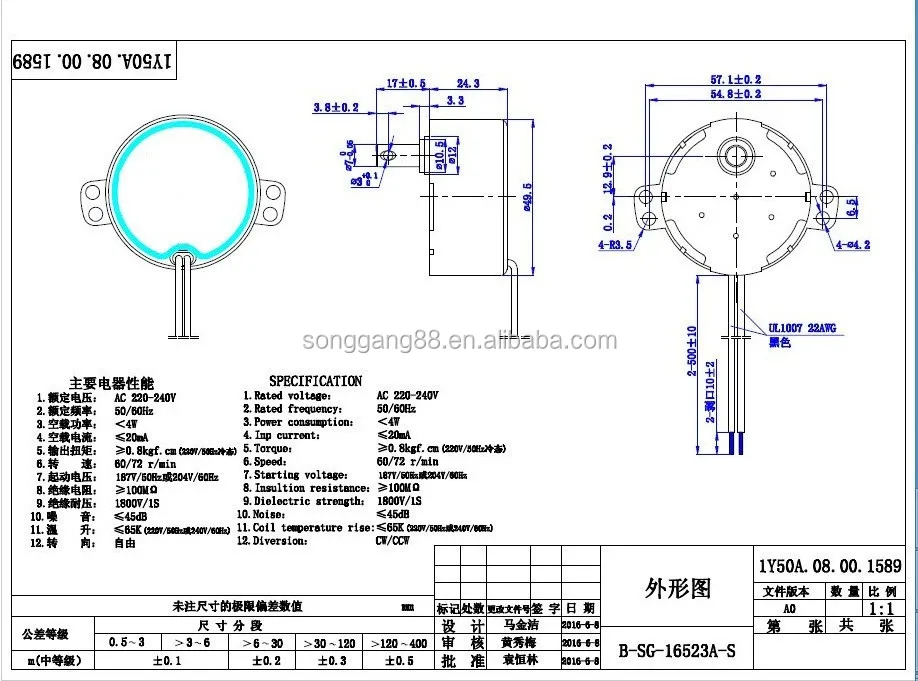

Motor Dimensions
Check following drawing
Shaft Sizes
Can be made as your requirements

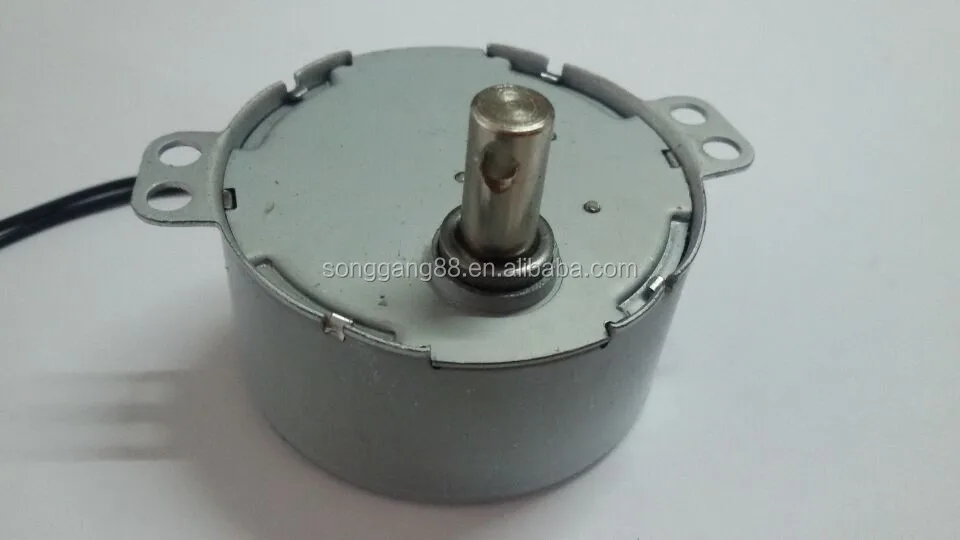

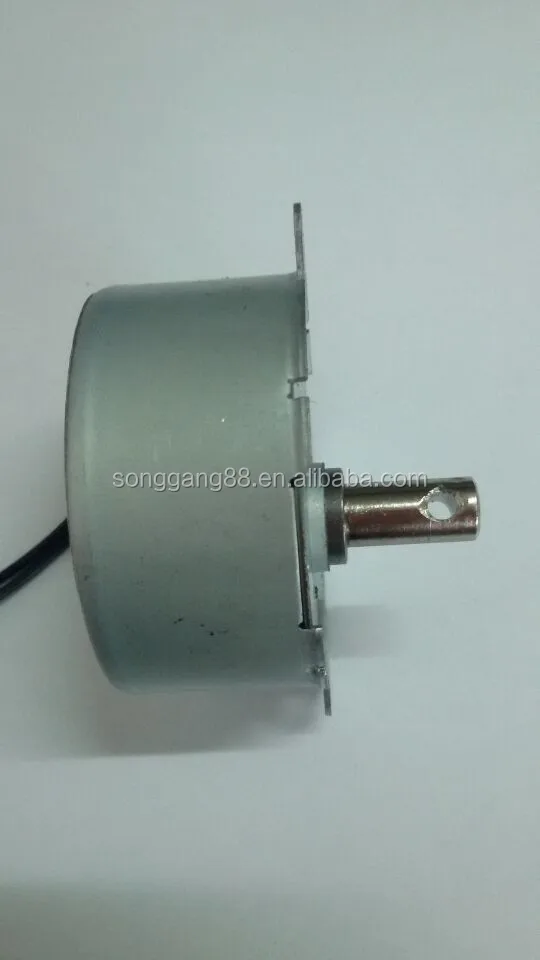

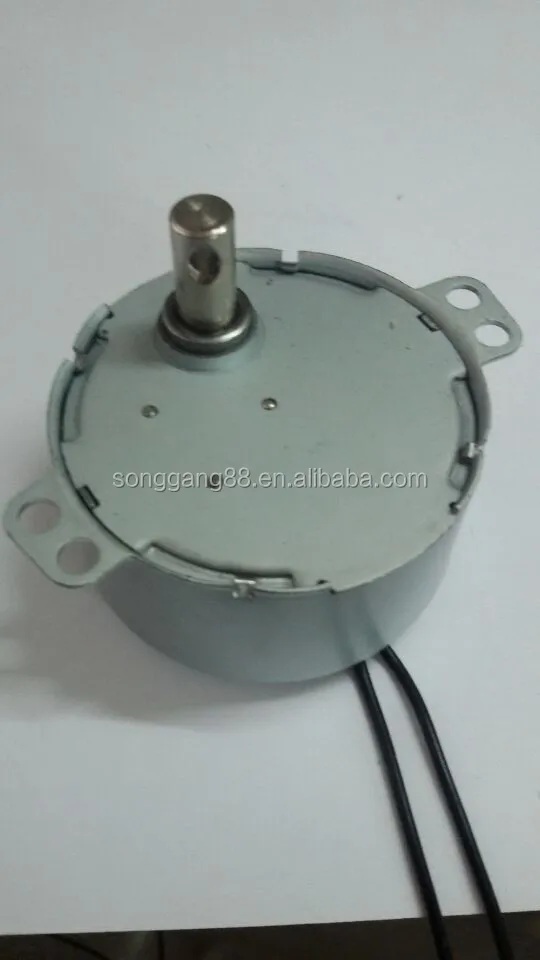

Detailed Image
Other Shaft Type
Packing & Delivery
Packaging
Size
30 * 29 * 22cm
Weight
13KG



Packaging Details



100pcs per carton.
Protective clapboard inside.
Our Company

Shenzhen Songgang Technology Co., Ltd.is one branch of Songgang international group company. The headquarters is in Hongkong. We have factories both in Taiwan and mainland China, producing kinds of AC motors and DC motors, such as synchronous motor, hysteresis motor(HTS), Dc gear motor, DC brush motor, brushless motor, planetary gear motor, stepper motor.

As the unique professional manufacturer producing synchronous motor of metal gear, Taiwan manufacturer serves manufacturers at home and abroad with the best service and superior quality and performance.

The company (in mainland China)have the power of import and export, and provide the most suitable motor and the relevant technology which makes our products sold to more than 30 countries.

Taiwan manufacturer of our company not only acquired the approval of ISO9002 International quality system certification, but also passed through UL the United States quality certification, CE /EMC the European Quality certification and ROHs environmental protection certification.

Our company not only have high self-making ratio products,but also keep improving high quality production management of equipments,which makes our company have more speedy and flexible service.

In order to meet the customers' needs of diversified development, we serve as an agent, also import Mabuchi motor from Japan. Our products can be delivered to customers form our warehouses, and also from HongKong,mainland China.

Our company will continue to uphold the spirit of seeking for greater perfectionand innovation in the future, and will be committed to create a new eara of synchronous motor.
