42mm Gearbox Shaft 7mm 24V 150rpm 10KG.CM Small DC Gear Motor SGB42RH

FOB Reference Price:Get Latest Price
$1.00 - $20.00 / Pieces | 1000 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
SONGGANG
Model Number:
SGB42RH
Voltage(V):
24V
Output Power:
10W
Usage:
Fan, Home Appliance
Certification:
ROHS
Type:
Micro Motor
Torque:
10kg.cm
Construction:
Permanent Magnet
Commutation:
Brush
Protect Feature:
Totally Enclosed
Speed(RPM):
150r/min
Continuous Current(A):
1.5A
Efficiency:
IE 4
Item Name:
Gearbox Shaft 7mm 24V 150rpm 10KG.CM Small DC Gear Motor SGB42RH
Nominal Voltage:
24V
No load Speed:
150rpm
Rated speed:
105rpm
Reduction Ratio:
1/31
Rated Current:
1.5A
Rated Torque:
10Kg/cm
Gearbox Length:
15.7mm
MOQ:
1000PCS
Port:
Shenzhen
Supply Ability
Supply Ability:
500000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Model: SGB42RH
100pcs per carton
Net weight:12.0KG
Gross weight:12.5.5KG
Sizes:44*33*23cm
Port
FOB Shenzhen
Lead Time :
Shipped in 35 days after payment
Product Description

Introduction of DC Gear Motor


Songgang is a specialized manufacturer of DC Electric Gear Motors for many OEMs. Songgang's management policy is to provide personalized service and reliable products for our customer internationally. We are highly recognized for our engineering excellence in R&D. We have more than 20 Sets gear hobbing machines, as well as 10 Sets CNC machines, and Muti-Moulds Pneumatic punching machines.


Carbon-brushed DC motor are commonly applied for low speed applications.Commutator and Carbon friction and carbon powder will be accumulated in the commutator's slot while motor used certain period.Carbon powder may cause short and result in burning motor.In terms of DC motor,carbon and commutator friction produce sparkle,the later cause Electromagnetic interference and Noise.When your product has the requirement of the anti- electromagnetic interference,please inform us so we can provide best suppression elements solution,but most of our motors have been tested in lab of third party and passed the EMC of Europe standard.


The output shaft can be customized variously according to customers'requirements.Great care should be taken when processing shaft,Motor performance may be affected by heavy radial loading,or external impact,or cutting metal powder.


Operating temperature range
Motor operating temperature range:-10'C+60'C. All of our technical datas are tested under ambient temperature between 20'C- 25'C.If motor operated out of above temperature range,lubricating oil can't work and which may cause motor can't work properly.

Operating Humidity range
Do Operate the motor in the humidity range of 20$~85% RH,In the moist environment, motor's metal parts is easy to get rusty, and it may get into malfunction.



Please let us know the following Parameter if we are lucky to attract your interests:

1. Voltage & Frequency
2. Number of revolutions and direction of rotation
3. Type of output shaft ( Our standard shaft our your customized shaft)
4. Torque on output shaft
5. Motor Dimensions if you have your own drawing



Model
SGB42RH
Nominal Voltage
24V
No Load Speed
150rpm
Rated Speed
105rpm
Reduction Ratio
1/31
Rated Torque
10kg.cm
Rated Current
1.5A
Motor Dimensions
Check following drawing
Customization
Parameter and shaft

Main Features

1) Long life span

2) Low noise

3) Flat type, Round type, Square type

4) Carbon brush, Metal brush, Precious metal brush

5) High torque and lightweight motor

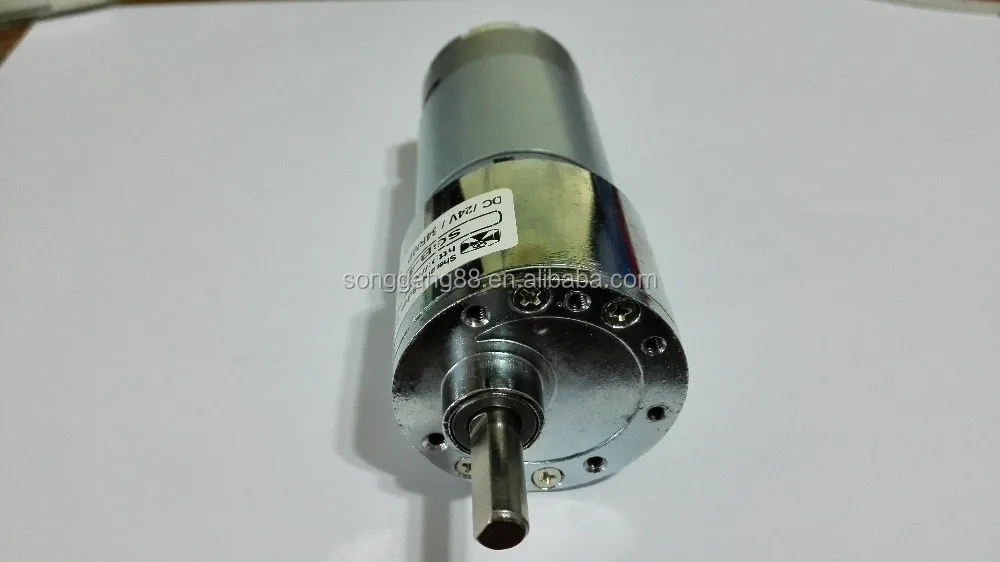

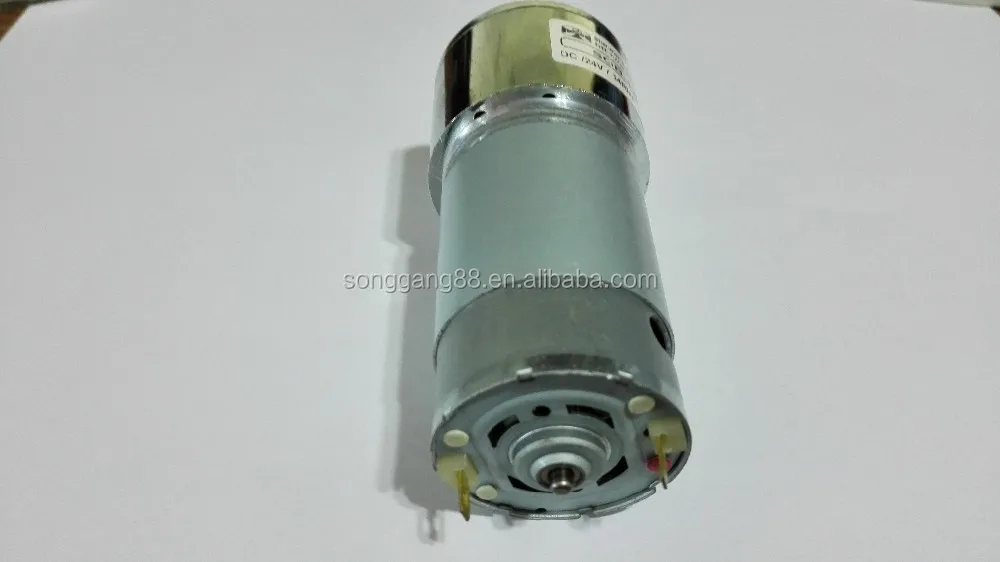

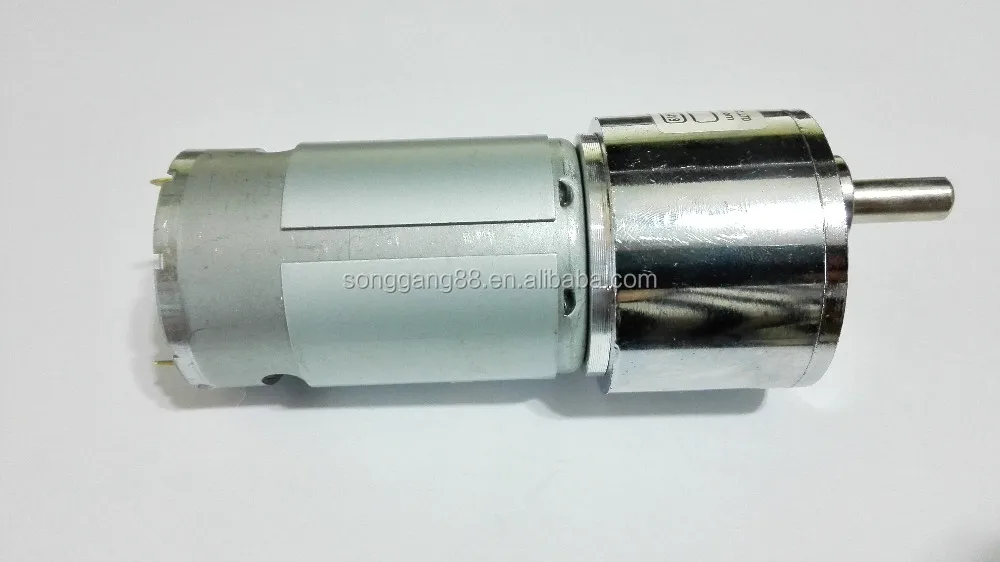

Detailed Images
Our Company

Shenzhen Songgang Technology Co., Ltd.is one branch of Songgang international group company. The headquarters is in Hongkong. We have factories both in Taiwan and mainland China, producing kinds of AC motors and DC motors, such as synchronous motor, hysteresis motor(HTS), Dc gear motor, DC brush motor, brushless motor, planetary gear motor, stepper motor.

As the unique professional manufacturer producing synchronous motor of metal gear, Taiwan manufacturer serves manufacturers at home and abroad with the best service and superior quality and performance.

The company (in mainland China)have the power of import and export, and provide the most suitable motor and the relevant technology which makes our products sold to more than 30 countries.

Taiwan manufacturer of our company not only acquired the approval of ISO9002 International quality system certification, but also passed through UL the United States quality certification, CE /EMC the European Quality certification and ROHs environmental protection certification.

Our company not only have high self-making ratio products,but also keep improving high quality production management of equipments,which makes our company have more speedy and flexible service.

In order to meet the customers' needs of diversified development, we serve as an agent, also import Mabuchi motor from Japan. Our products can be delivered to customers form our warehouses, and also from HongKong,mainland China.

Our company will continue to uphold the spirit of seeking for greater perfectionand innovation in the future, and will be committed to create a new eara of synchronous motor.
