Brush construction low current gearhead 24 Volt 160rpm Small DC Gear Motor with gearbox SGA28RO

FOB Reference Price:Get Latest Price
$1.00 - $10.00 / Pieces | 100 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
SONGGANG
Model Number:
SGA28RO
Voltage(V):
24V
Output Power:
10W
Usage:
Home Appliance, Robots/ toys
Certification:
ROHS
Type:
Gear Motor
Torque:
2.75Kg/cm
Construction:
Permanent Magnet
Commutation:
Brush
Protect Feature:
Totally Enclosed
Speed(RPM):
160RPM
Continuous Current(A):
0.78A
Efficiency:
IE 4
Item Name:
24 Volt 160rpm Small DC Gear Motor with gearbox SGA28RO
Model:
SGA28RO
Voltage:
24V
Reduction Ratio:
1/62
No Load Speed:
160rpm
Rated Torque:
2.75KG/cm
Gearbox Length:
22.5mm
Rated speed:
112rpm
Rated current:
0.78A
Port:
Shenzhen
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month
Packaging & Delivery
Port
FOB Shenzhen
Lead Time :
Shipped in 35 days after payment
Product Description

Introduction of DC Gear Motor


Carbon-brushed DC motor are commonly applied for low speed applications.Commutator and Carbon friction and carbon powder will be accumulated in the commutator's slot while motor used certain period.Carbon powder may cause short and result in burning motor.In terms of DC motor,carbon and commutator friction produce sparkle,the later cause Electromagnetic interference and Noise.When your product has the requirement of the anti- electromagnetic interference,please inform us so we can provide best suppression elements solution,but most of our motors have been tested in lab of third party and passed the EMC of Europe standard.

The output shaft can be customized variously according to customers'requirements.Great care should be taken when processing shaft,Motor performance may be affected by heavy radial loading,or external impact,or cutting metal powder.

Operating temperature range
Motor operating temperature range:-10'C+60'C. All of our technical datas are tested under ambient temperature between 20'C- 25'C.If motor operated out of above temperature range,lubricating oil can't work and which may cause motor can't work properly.

Operating Humidity range
Do Operate the motor in the humidity range of 20$~85% RH,In the moist environment, motor's metal parts is easy to get rusty, and it may get into malfunction.

Please let us know the following Parameter if we are lucky to attract your interests:


1. Voltage & Frequency
2. Number of revolutions and direction of rotation
3. Type of output shaft ( Our standard shaft our your customized shaft)
4. Torque on output shaft
5. Motor Dimensions if you have your own drawing

Model
SGA28RO
Voltage
24V
Reduction ratio
1/62
No load speed
160rpm
Rated current
0.78A
Rated torque
2.75kg.cm

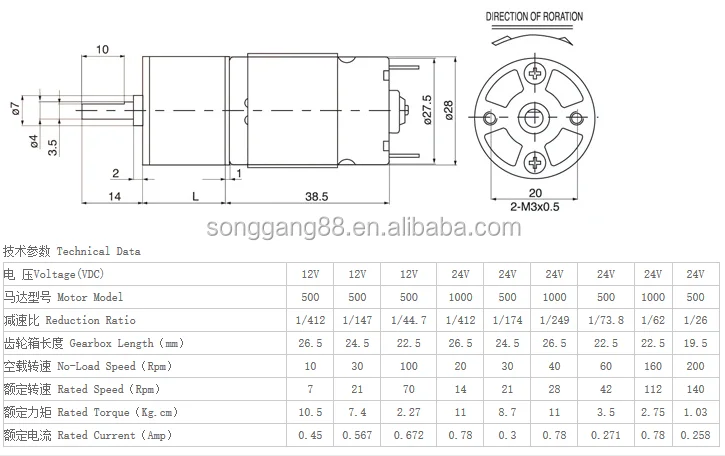

Motor dimensions
Check following drawing

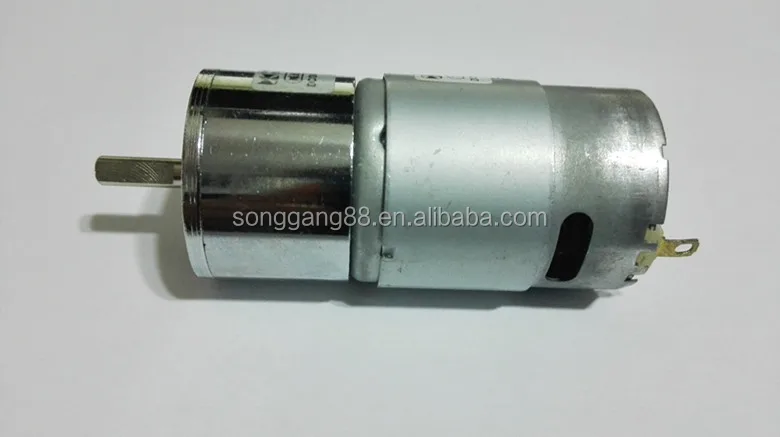

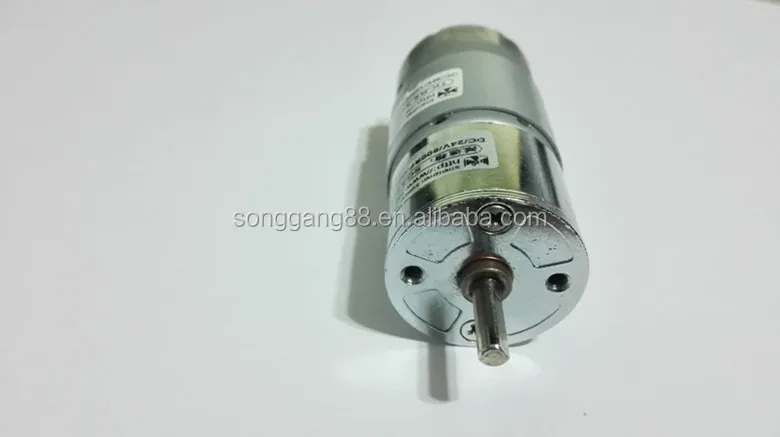

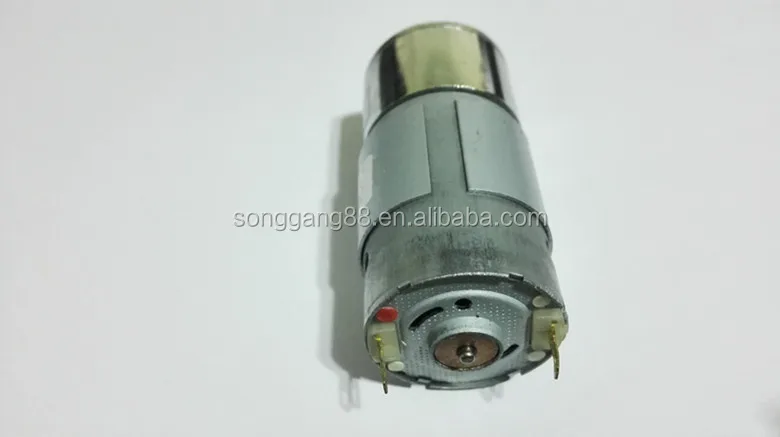

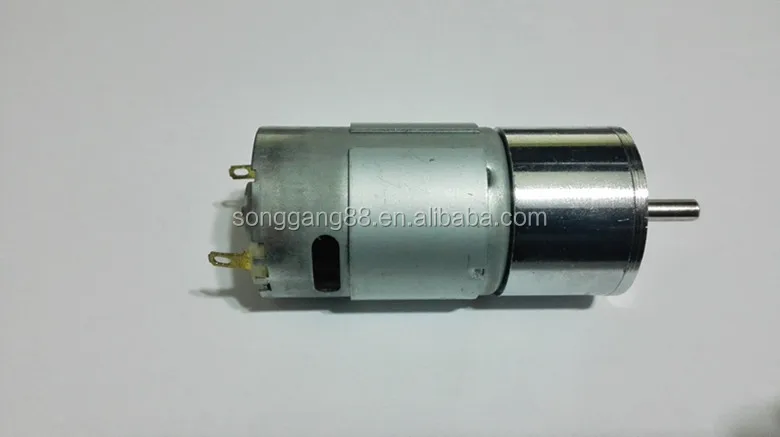

Detailed Image
